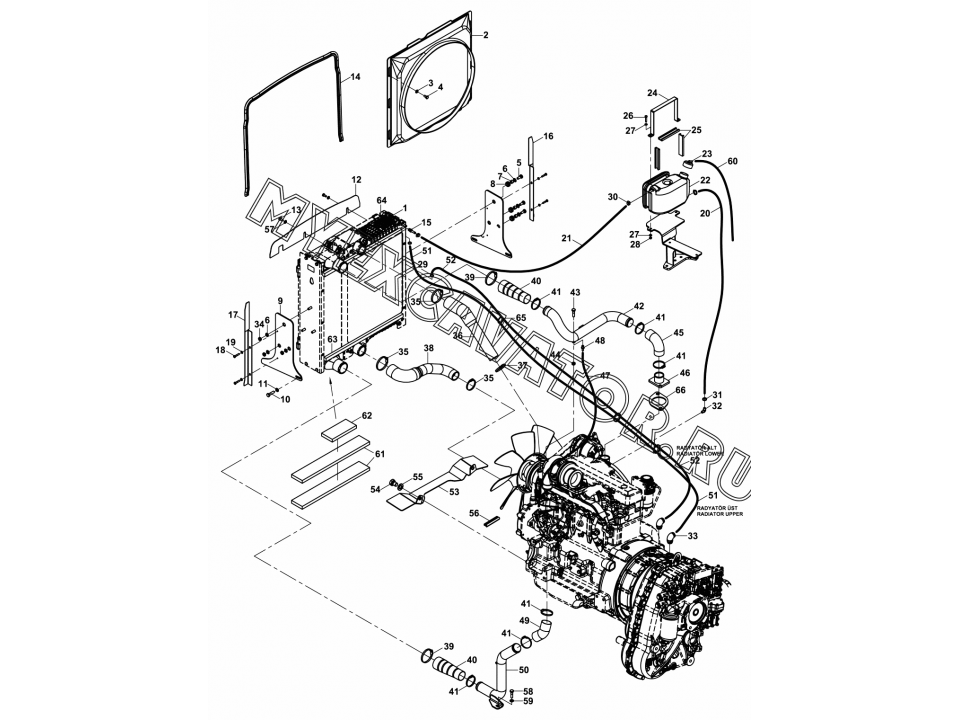

Система охлаждения/RADIATOR - OIL COOLER AND FITTINGS (S/N: A19001-) H1-1-1 Hidromek HMK 102 B

1. COOLER
2. 020/40076 COWLING, FAN
3. N03/0720006 WASHER
4. N01/0232078 BOLT M8x16
5. N01/0232462 BOLT M10x25
6. N03/0020018 WASHER M10
7. 020/21088 RING
8. 810/40006 GROMMET
9. 020/21723 BRACKET MOUNTING
10. N01/0232438 BOLT M10x20
11. N03/0020121 WASHER
12. 020/03130 AIR CURTAIN
13. N01/0232054 BOLT M8x12
14. H13/0133015 STRIP 1,81m
15. 806/08014 ADAPTER
16. 020/12773 AIR CURTAIN, RIGHT
17. 020/12772 AIR CURTAIN, LEFT
18. N01/0231442 BOLT M6x10
19. N03/0100013 WASHER, M6
20. H06/7031508 HOSE 0,66m
21. H06/7000104 HOSE 0,25m
22. F99/29010 EXPANSION TANK
23. F99/29100 EXPANSION TANK COVER
24. 020/12636 CLAMP
25. 810/48119 RUBBER CLAMP
26. N01/0231514 BOLT M6x30
27. N03/0020004 WASHER, M6
28. N02/5910050 NUT M6
29. N07/4016025 CLAMP
30. N07/4010016 CLAMP
31. N07/4016025 CLAMP
32. 806/20200 ADAPTER
33. N16/3470450 ELBOW
34. N02/5910086 NUT M10
35. N07/4050070 CLAMP
36. 810/40515 HOSE
37. N07/4040060 CLAMP
38. 810/40516 HOSE
39. N07/4405779 CLAMP
40. F99/06193 HOSE
41. N07/4404567 CLAMP
41. N07/4505070 CLAMP
42. 810/09519 PIPE
43. N01/0232486 BOLT M10x30
44. N01/5910086 NUT M10
45. F99/06191 HOSE
46. 019/92939 ADAPTOR
47. H06/8230104 HOSE 0,25m
48. 806/08018 ADAPTER
49. F99/06192 HOSE
50. 810/09518 PIPE
51. 701/3326225 HOSE
52. 701/3326225 HOSE
53. 810/40177 AIR CURTAIN
54. N01/0233506 BOLT M16x20
55. N03/0020029 WASHER M16
56. H13/0133015 STRIP 0,35m
57. N07/0720006 WASHER
58. N01/0232438 BOLT M10x20
59. N03/0020121 WASHER
60. H06/7000104 HOSE 1,05m
61. 816/02044 SEAL, INSULATION
62. 816/02045 SEAL, INSULATION
63. H13/0315150 BAND 0,56m
64. H13/0315150 BAND 0,56m
65. 510/12200 CIRCLIP
66. F01/82426 GASKET

Характеристики
Применяемость	102B
