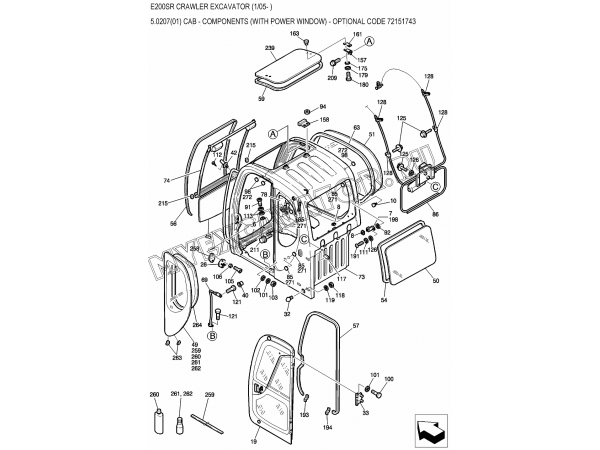

5.0207(01) Кабина/CAB - COMPONENTS (WITH POWER WINDOW) - OPTIONAL CODE 72151743 New Holland E200SR
Отправить запрос
Ваш заказ будет обработан в самые короткие сроки. Мы ценим наших клиентов.
72963898 CAB, ASSY
6. YT02C01067P1 INSULATOR, RUBBER
7. YT02C01068P1 HOLDER, - LH
8. YT02C01081D1 SEAL
10. YT02C01070P1 RUBBER SLEEVE
19. YT51C00003F1 DOOR ASSY., ASSY
26. YT51C01021P1 HOOK
32. YT02C01114P1 STOP
33. YT02C01226P1 HINGE
40. YT02C01233P1 CAP
42. YT54C00001P1 WASHER
45. 72950127 GLASS
49. YT02C01497P1 GLASS
50. 72950129 GLASS
50. 87336598 GLASS
51. 72950143 GLASS
54. YT02C01115D2 RUBBER SLEEVE
56. YT02C01579P1 RUBBER SLEEVE
57. 72950141 GASKET
59. YT02C01118D1 RUBBER SLEEVE
63. 72950144 GASKET
69. YT02C01260P1 HANDLE
73. 72963897 CAB
74. 72958491 WINDOW, ASSY
78. 72958495 WIPER
85. YT02C01261D3 PLATE, - NEUTRAL GRAY
86. YT02C01007F1 CABLE
91. ZS28C08012 SCREW
92. YT02C01333P1 WASHER
94. YR11M01038D1 NUT
98. YT02C01261D2 PLATE, - NEUTRAL GRAY 100 72954875 SCREW 101 72954903 WASHER 102 72954906 WASHER, LOCK 103 72954869 NUT 105 ZS68C08025 CAP 106 YT02C01229P1 WASHER 111 2418Z726D3 WASHER, LOCK 112 ZS32T40012 SCREW 113 ZW16K08000 WASHER 117 72954377 PLATE 118 72150673 NUT 119 ZW16X12000 WASHER 121 ZM27C10025 BOLT 125 ZM66C06016 BOLT 126 2420T4505 WASHER 128 72958503 CLAMP 157 YT02C01423P1 BRACKET 158 YT02C01391P1 PLATE 161 YT02C01364P1 GASKET 163 YT50C01020P1 RETAINER 175 ZW16X14000 WASHER 179 72209113 WASHER 180 YT02C01241D1 BOLT 191 2420Z1227D8 SCREW 193 72954395 GASKET 194 72954396 GASKET 198 YT02C01334P1 HOLDER, - RH 209 ZM46C05016 BOLT 211 72952744 SCREW 215 YN02C01513P1 SEAL 239 YN02C01855P1 GLASS 258 YT51C01077D1 SPACER 259 72958199 SEAL 260 72958218 KIT 261 72958200 PAINT 262 72958201 PAINT 263 YT02C01511P1 SPACER 264 72950147 STRIP 271 72151893 PLATE, - GRAYISH BLACK 272 72151892 PLATE, - GRAYISH BLACK
6. YT02C01067P1 INSULATOR, RUBBER
7. YT02C01068P1 HOLDER, - LH
8. YT02C01081D1 SEAL
10. YT02C01070P1 RUBBER SLEEVE
19. YT51C00003F1 DOOR ASSY., ASSY
26. YT51C01021P1 HOOK
32. YT02C01114P1 STOP
33. YT02C01226P1 HINGE
40. YT02C01233P1 CAP
42. YT54C00001P1 WASHER
45. 72950127 GLASS
49. YT02C01497P1 GLASS
50. 72950129 GLASS
50. 87336598 GLASS
51. 72950143 GLASS
54. YT02C01115D2 RUBBER SLEEVE
56. YT02C01579P1 RUBBER SLEEVE
57. 72950141 GASKET
59. YT02C01118D1 RUBBER SLEEVE
63. 72950144 GASKET
69. YT02C01260P1 HANDLE
73. 72963897 CAB
74. 72958491 WINDOW, ASSY
78. 72958495 WIPER
85. YT02C01261D3 PLATE, - NEUTRAL GRAY
86. YT02C01007F1 CABLE
91. ZS28C08012 SCREW
92. YT02C01333P1 WASHER
94. YR11M01038D1 NUT
98. YT02C01261D2 PLATE, - NEUTRAL GRAY 100 72954875 SCREW 101 72954903 WASHER 102 72954906 WASHER, LOCK 103 72954869 NUT 105 ZS68C08025 CAP 106 YT02C01229P1 WASHER 111 2418Z726D3 WASHER, LOCK 112 ZS32T40012 SCREW 113 ZW16K08000 WASHER 117 72954377 PLATE 118 72150673 NUT 119 ZW16X12000 WASHER 121 ZM27C10025 BOLT 125 ZM66C06016 BOLT 126 2420T4505 WASHER 128 72958503 CLAMP 157 YT02C01423P1 BRACKET 158 YT02C01391P1 PLATE 161 YT02C01364P1 GASKET 163 YT50C01020P1 RETAINER 175 ZW16X14000 WASHER 179 72209113 WASHER 180 YT02C01241D1 BOLT 191 2420Z1227D8 SCREW 193 72954395 GASKET 194 72954396 GASKET 198 YT02C01334P1 HOLDER, - RH 209 ZM46C05016 BOLT 211 72952744 SCREW 215 YN02C01513P1 SEAL 239 YN02C01855P1 GLASS 258 YT51C01077D1 SPACER 259 72958199 SEAL 260 72958218 KIT 261 72958200 PAINT 262 72958201 PAINT 263 YT02C01511P1 SPACER 264 72950147 STRIP 271 72151893 PLATE, - GRAYISH BLACK 272 72151892 PLATE, - GRAYISH BLACK
| Характеристики | |
|---|---|
| Применяемость | E200SR |
